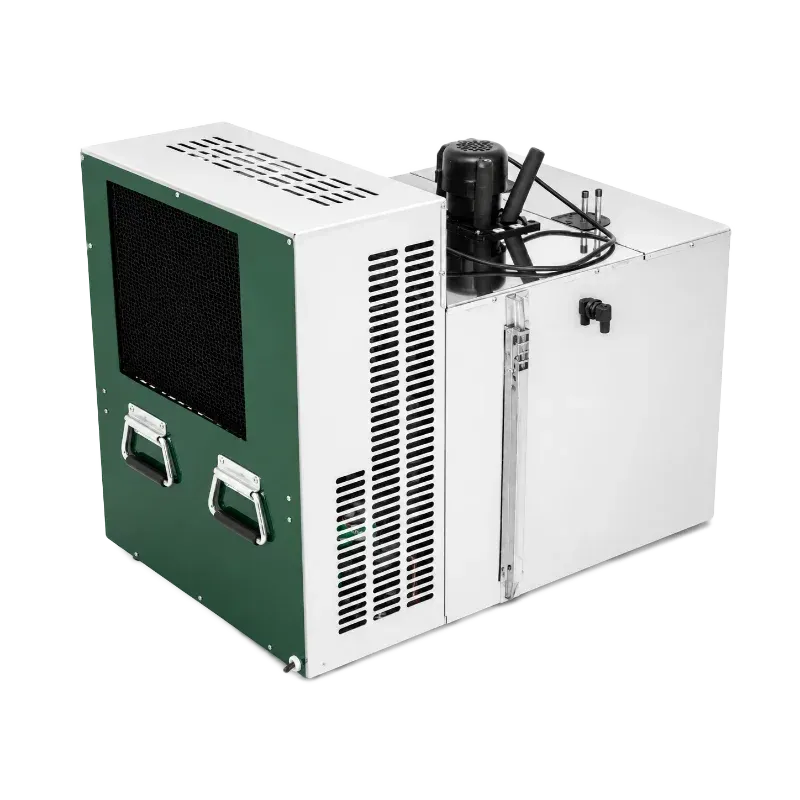

Micro Matic ECO XL HE2 Horizontal Ice-Bank Beer Cooler
Shipping from stock
Micro Matic ECO XL HE2 Horizontal Ice-Bank Beer Cooler
The ECO XL HE2 is not a standard vertical cooler. It is a heavy-duty horizontal undercounter unit designed for professional dispensing systems that need high first-hour output, strong continuous cooling and stable performance during demanding service.
Built for serious draught-beer volume
Micro Matic ECO XL HE2 is a high-capacity horizontal undercounter ice-bank cooler for professional beer dispensing. With two refrigeration circuits, a 34 kg ice bank, a 76 litre water tank and two 22 m beer coils, it delivers up to 226 L/h continuously at ΔT 10 °C and up to 528 L in the first hour.
Two beer circuits
Two long stainless-steel product coils support two beer lines or a dual-line installation.
34 kg ice bank
The large ice reserve absorbs sudden peak demand and helps stabilise serving temperature.
Horizontal undercounter format
The low body is designed for installation beneath bars, counters and technical worktops.
Up to 528 litres in the first hour
With 2 × 9.99 cc compressors, a 76 litre water tank and a 34 kg ice bank, the unit combines stored cooling reserve with strong continuous output.
Continuous performance
After the stored ice reserve has been used, the twin-compressor refrigeration system continues to provide substantial cooling output for extended service.
Remote-draw installations
The horizontal body is suitable for undercounter or back-of-bar placement with insulated beverage lines leading to the dispensing point.
Suitable for
- High-volume beer bars and taprooms
- Restaurants and hotels with central keg storage
- Stadiums, arenas and festival bars
- Event and catering installations
- Remote-draw systems with long beverage lines
- Two-line professional dispensing systems
Professional project configuration
Correct sizing depends on line length, insulation, keg-room temperature, target serving temperature, ambient conditions and expected peak volume.
Customers Also Viewed
-
ICEBREAKER POP
€30.00 -
LaRocca Retro espresso
€2,106.00 -
HealthyBar FruityFreeze Slush BIB 5 kg – Elmeco Refill Ready
Starting at: €42.50
-
High Flow solutions for larger operations
Starting at: €463.91
- Type: ECO XL HE2
- Product code: 712A549
- Application: Undercounter unit for cooling beer
- Configuration: Horizontal ice-bank cooler
- Beer lines: 2
- Refrigerant: R290
- Compressors: 2 × 9.99 cc
- Cooling power: 2388 W / 8529 kJ/h
- Continuous capacity at ΔT 10 °C: 226 L/h
- Continuous capacity at ΔT 20 °C: 113 L/h
- First-hour capacity at ΔT 10 °C: 528 L/h
- First-hour capacity at ΔT 20 °C: 264 L/h
- Ice bank: 34 kg
- Water tank: 76 L
- Beer coils: 2 × 8/7 mm × 22 m
- Dimensions: 585 × 832 × 637 mm
- Weight: 71.5 kg
- Power supply: 230 V / 50 Hz
- Rated power: 1.13 kW
- Operating current: 7.47 A
| Shipping from | Croatia |
|---|
