This version complements the four A15 valve boxes and gives trade partners an additional solution for local manual isolation points.

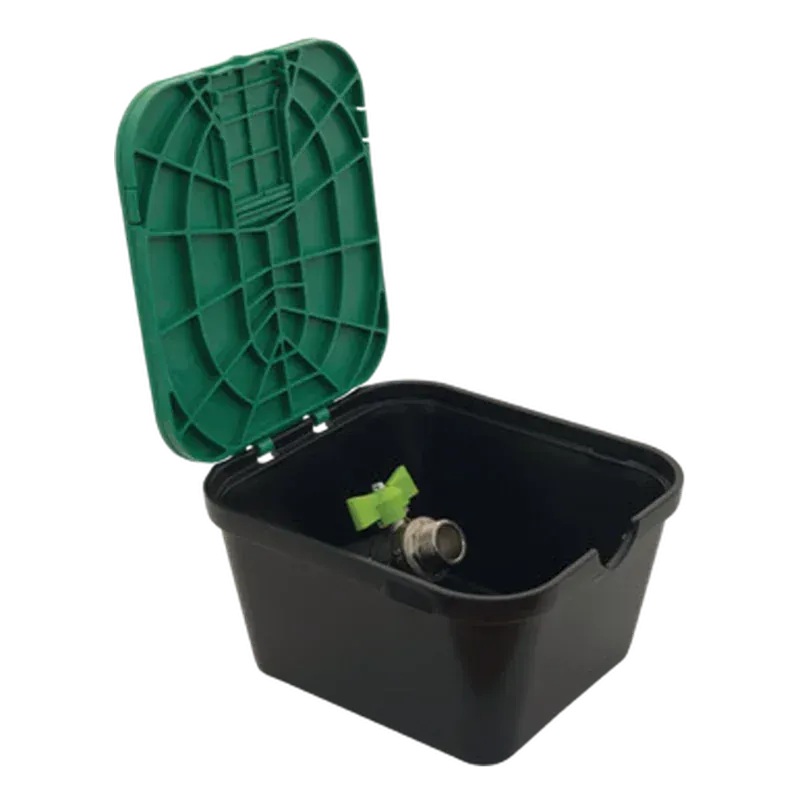

Ask about DENKEN partnershipDENKEN DNK220 W/V Valve Box with 3/4" Brass Ball Valve
Shipping from stock
Valve access and manual shut-off in one compact assembly
Instead of installing a separate underground enclosure and then arranging a loose shut-off valve inside it, this compact solution integrates a 3/4" brass ball valve directly into the box for a clean local isolation point.
Useful for local isolation and service points
A local manual shut-off makes maintenance easier because one branch or irrigation section can be isolated without necessarily shutting down the entire water supply. The compact enclosure keeps the valve accessible from finished landscape level and protects the connection in the ground.
Important distinction
This specialised integrated-valve version is not part of the A15 15 kN / Screwless load-bearing group. Choose DNK200, DNK320, DNK410 or DNK560 when A15 classification is required.
| Product type | Underground service / shut-off valve box |
|---|---|
| External / base dimensions | 220 × 198 × 117 mm |
| Lid dimensions | 214 × 187 mm |
| Shape | Rectangular |
| Body material | 100% recycled PP (polypropylene), black |
| Lid material | 100% recycled HDPE, green, with UV protection additive |
| Integrated valve | 3/4" brass ball valve |
| Valve inlet | 3/4" female thread |
| Valve outlet | 3/4" male thread |
| Load class | Not part of the A15 range |
| Closure | Standard access lid; not part of the Screwless A15 group |
| Installation | Underground / flush with finished landscape level |
| Typical application | Local manual shut-off, section isolation and service connection |
| Unit packaging | 8 pcs per carton |
| Product weight | 0.875 kg |
| Shipping from | Croatia |
|---|
